Recently I got an assignment to build a new web based server side project. Normally for Web based projects we used Spring MVC, Hibernate for persistence and Maven for dependencies management. At this point I have two options.
First option is to manually create a new Project, create Maven POM file, create folder structure, define dependencies related to spring and Hibernate, create Hibernate and Spring configuration files like persistence.xml and web.xml. Usually this process takes two to three hours to configure every thing properly and make this project in running condition
Second Option is to use “Spring Roo”. Spring Roo will work as my junior developer. It will automatically generate Application Structure, pom file, required configuration files for spring and hibernate and all this process will take maximum 5 to 10 minutes and for this I just have to execute few commands.
Is it real or I am in my dreams J
Spring Roo is a dynamic, domain-driven development framework from SpringSource the makers of the Spring framework. Spring Roo uses standard Java and Spring, but during development time, the Spring Roo shell watches you work, helping out as possible and required. Think of Spring Roo as being the ultimate pair-programming buddy, or the most advanced code completion you’ve ever seen
As an example of this power, suppose you’re in the middle of editing a JPA entity in a Spring Roo project, and adding a field of interest—perhaps a name field to a Customer entity. As soon as you’ve finished typing out the field definition, Spring Roo automatically jumps in and adds a corresponding accessor and mutator pair for that field to a shadow class definition in the background. Similarly, it will implement a toString() definition (reflecting the fields added) if one does not already exist, and it will implement an equals() method following the same criteria.. If you update the field, the accessor and mutator are updated as well as the equals and toString methods. If you add an equals method to the JPA entity, the shadow definition is removed, delegating to your implementation instead. So, this shadow class definition is kept in sync, responding to your changes, but it does not get in your way. It defers to your will in all cases.
So, you get Java, but you don’t have to pay the cost of writing all that Java.
Latest Spring Roo Release can be downloaded from http://www.springsource.org/download
Once downloading will finish you will find a folder spring-roo-1.2.0.M1. If you go to bin folder you will find roo.bat. Once you click on this file a command console will open and from here you can control your project.
Another simpler option is to use Spring Source Tool Suit IDE which has built-in support of Spring Roo and you don’t have to worry about any configuration. This ID is freely available at Spring Source website
It’s an Eclipse based IDE Just download this IDE and start your development
To start a new Project just click on FileàNewàSpring Roo Project
Enter name of the project. In my case I named it “CustomerManagementSystem”. Define top level java package which in my case is “com.eiconsulting.cms” and press finish.
This will automatically generate a project with Correct Maven based application structure, pom.xml file with correct dependencies of JUnit, the correct and latest versions of spring, AspectJ, logging, and the latest servlet APIs.
You will notice a Roo.shell at bottom of your ide
This shell is your pair programmer. Here you will write all your commands
So let’s start the magic of Roo
In our project we are planning to use JPA and for this Hibernate as a JPA provider and My SQL as a database. Our pair programmer will help us to configure all this we just need to execute a simple command at Roo console
Actually I am not good in remembering commands, I remember it was some thing like “persist” so I just type persis and press CTRL+ SPACE, automatically “persistence setup” appears in my console after that I press CTRL+ SPACE again now I have two options to define provider and database. Finally I configured my command like this
persistence setup --provider HIBERNATE --database MYSQL
I pressed enter and Magic started
Roo has defined all Hibernate related dependencies in my POM. In META-INF folder persistence.xml automatically created with all MySQL related configuration details and now in a newly generated database.properties file I just have to define database url, username and password.
Now my My Project has full support of Spring and Hibernate with all required configuration files.
After this step my IDE started complaining about Maven Dependency
Missing artifact org.springframework.roo:org.springframework.roo.annotations:jar:1.1.4.RELEASE:provided
I searched about this at Internet and come up with a very simple solution
Open you pom file and replace Roo dependency
<!-- ROO dependencies -->
Next step is to write my business logic. My initial thinking, “defiantly I have to write all my code by my self “, Luckily Spring Roo is helping me here as well
Because I am developing a CMS so my business requirement is to create a Customer Entity which has name and address field. To create an entity in Spring ROO simply type
entity --class com.eiconsulting.beans.Customer
In response ROO will automatically generate package and class with name Customer. Also you have noticed that ROO has created couple of configuration files for this entity. These files are not part of our project and they are ROO internal use and we don’t have to bother about them.
Next step, we want to add name and address field. Following commands will perform this action
field string --fieldName name –notNull
field string --fieldName address --notNull
You will notice that ROO has generated few annotation is Customer class
This is for ROO Internal use to assist you during development If you simply don’t want Roo to even bother, simply remove the annotation from the Customer.java file and watch as Spring Roo removes the corresponding .aj file. If, later, you decide you that you were a bit hasty in dismissing its help, simply replace the annotation and Roo will obediently hop back into action again.
From this point you can move forward and start writing your business logic as per our requirements
As I mentioned earlier that we are planning to build MVC based project and we noticed that our project doesn’t contains folder structure for a Web based project, also for MVC based project we need a Customer Controller
Well very simple just execute following command and see the magic
controller scaffold --entity com.eiconsulting.beans.Customer --class com.eiconsulting.web.CustomerController

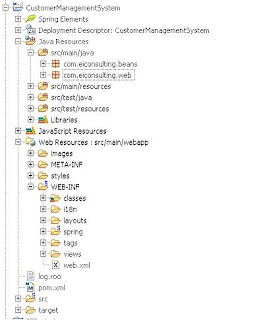

Automatically ROO will convert you project to a Web based project with Customer Controller with proper directory structure for a web based project
Also you will notice that ROO has create lots of images, css files and sample images
All these files are for your support. You can delete them or use them as per your requirements
Just build your project using your maven package command and it will generate a resultant war file. In our case it is CustomerManagementSystem-0.1.0.BUILD-SNAPSHOT.war. Deploy it in your favourite web server
You will notice a file with name log.roo. This file contains all commands which you have executed in ROO so far
To remove Roo from a project, you need to import the project into Eclipse or SpringSource Tool Suite. Once the project has been imported into Eclipse, right-click the project name in Package Explorer and select Refactor > Push-In Refactor. If this option is missing, ensure that you have a recent version of AJDT installed. After selecting the push-in refactor menu option, a list of all Roo inter-type declarations will be displayed. Simply click OK. AJDT will have now moved all of the Roo inter-type declarations into your standard
.javafiles. The old
*_Roo_*.ajfiles will have automatically been deleted. Complete Removal details are present at this URL http://static.springsource.org/spring-roo/reference/html/removing.html
Reference: Getting Started with ROO
